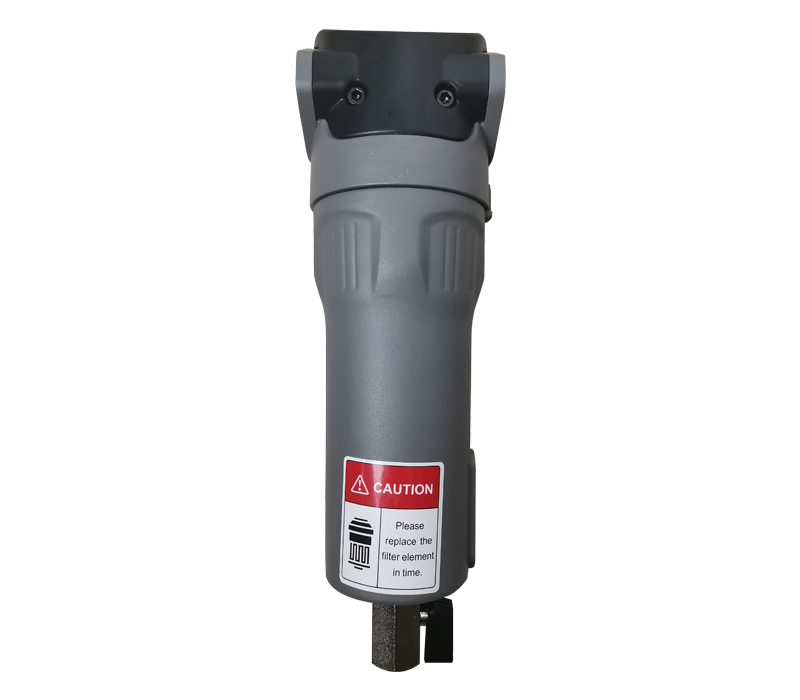

CTA Precision Filters

Multi‑Stage Filtration, High Efficiency, Reliable Protection

CTA Precision Filters – Multi-Stage Protection, Reliable Performance.


Multi‑stage glass fiber filters for general industrial use. Available in grades C, T, A – from 5 μm to 0.01 μm particle removal, oil carry‑down to 0.01 ppm.


Low pressure drop, long element life, easy cartridge change. Protect your valves, instruments, and sensitive processes. Plug‑and‑fit reliability for daily industrial operation.

Request a Quote

Features

These models provide a typical return on investment between 6 to 24 months.

Simple Installation

Plug-and-play system can be installed easily with minimum cost and interruption.

Small Footprint

Compact design allows installation in spaces too small for twin tower generator systems.

A-Series Specifications

C-Class Precision Filter

Material: Multi-layer Glass Fiber

Filtration Rating: 5 MICRON

Residual Oil Content: 5 PPM

Max.Pressure: 16 kg/cm²

Max.Temperature: 65°C

Typical Pressure Differential: 0.2 KG/CM²

Max.Pressure Differential: 0.7 KG/CM²


T-Class Precision Filter

Material: Multi-layer Glass Fiber

Filtration Rating: 1 MICRON

Residual Oil Content: 0.5 PPM

Max. Pressure: 16 kg/cm²

Max. Temperature: 65°C

Typical Pressure Differential: 0.17 KG/CM²

Max.Pressure Differential: 0.7 KG/CM²


A-Class Precision Filter

Material: Multi-layer Glass Fiber

Filtration Rating: 0.01 MICRON

Residual Oil Content: 0.01 PPM

Max. Pressure: 16 kg/cm²

Max. Temperature: 65°C

Typical Pressure Differential: 0.275 KG/CM²

Max.Pressure Differential: 0.7 KG/CM²

Frequently Asked Questions

What is a nitrogen generator, and how does it work?

A nitrogen generator is a device that produces nitrogen gas (N₂) from compressed air. It uses separation methods, such as Pressure Swing Adsorption (PSA) and Membrane Technology, to remove oxygen and other gases, leaving purified nitrogen gas.

What are the advantages of having a nitrogen generator over purchasing bottled nitrogen?

Cost savings: Long-term savings are achieved by eliminating the recurring costs of purchasing bottled nitrogen.

Convenience: Continuous on-site nitrogen generation eliminates the need for deliveries and reduces the risk of running out of nitrogen.

Customization: On-demand nitrogen generation allows you to tailor the flow and purity to your needs.

What is the difference between PSA and membrane nitrogen generators?

PSA (Pressure Swing Adsorption): Uses carbon molecular sieves to separate nitrogen from other gases in compressed air under varying pressure.

Membrane Technology: This technology uses selective permeable membranes to separate nitrogen from oxygen based on the size of the molecules.
