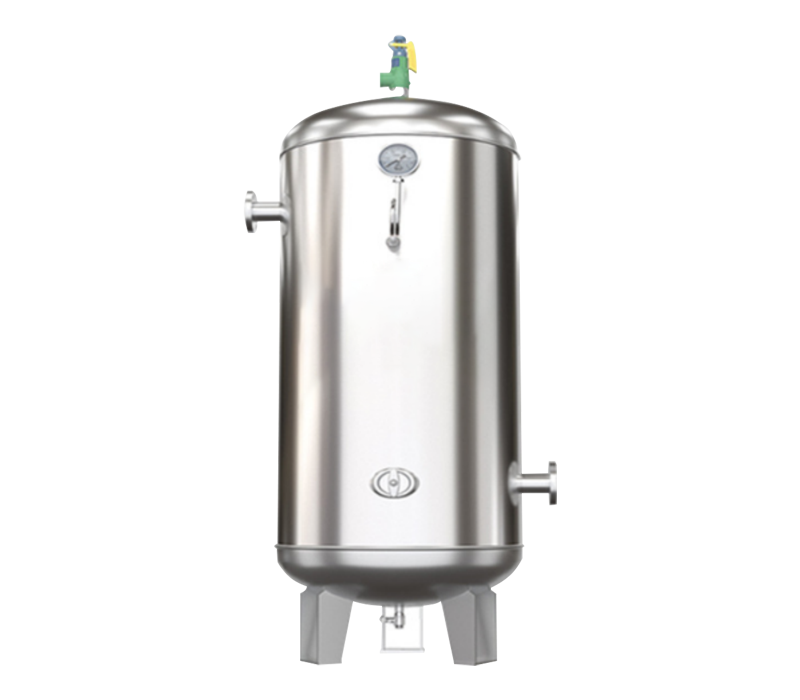

Vertical tank in 304 stainless steel – naturally corrosion-resistant, no paint, no liner to peel or flake. This means no rust spots, no coating maintenance, and no contamination risk over decades of use.
Ideal for food, pharma, electronics, and marine environments. Absorb pulsation, stabilize flow, and knock out moisture before your dryer. This reduces the moisture load on downstream equipment, extending its service life and lowering your total cost of ownership.
Smooth internal surface prevents bacteria build-up and particle shedding. Each tank comes with certified safety valve, precision gauge, and stainless steel drain. Simple to install – connect and protect. No special tools or sealants required.
No rust, no contamination, just clean air – ready for 24/7 operation. From a single workstation to a full production hall, these tanks deliver the buffer capacity you need.
Request a Quote
These models provide a typical return on investment between 6 to 24 months.
Plug-and-play system can be installed easily with minimum cost and interruption.
Compact design allows installation in spaces too small for twin tower generator systems.
| Model | Volume (ft³/gal) | Design Pressure (PSI) | Design Temp (°F) | Height (IN) | Inner Diameter (IN) | Weight (LB) | Inlet/Outlet | Material | Service |
| 0.1/0.8 | 3.5 / 26 | 152 | 230 | 47.2 | 15.7 | 132 | DN40 | 304 SS | Air |
| 0.3/0.8 | 10.6 / 79 | 152 | 230 | 63.5 | 21.7 | 165 | DN40 | 304 SS | Air |
| 0.6/0.8 | 21.2 / 159 | 122 | 230 | 84.0 | 25.6 | 245 | DN40 | 304 SS | Air |
| 1.0/0.8 | 35.3 / 264 | 122 | 230 | 88.9 | 31.5 | 386 | DN40 | 304 SS | Air |
| Material | 304 Stainless Steel |
|---|---|
| Service | Compressed Air |
| Inlet/Outlet Connection | DN40 internal thread (approx. 1½″ NPT) |
| Design Temperature | 230°F (110°C) |
| Test Pressure | For 0.1/0.8 and 0.3/0.8: 1.0 MPa (145 psi) and 1.58 MPa (229 psi) respectively For 0.6/0.8 and 1.0/0.8: 1.26 MPa (183 psi) and 1.15 MPa (167 psi) respectively |
| Standard Accessories | Safety valve, pressure gauge, drain valve (typically included) |
A nitrogen generator is a device that produces nitrogen gas (N₂) from compressed air. It uses separation methods, such as Pressure Swing Adsorption (PSA) and Membrane Technology, to remove oxygen and other gases, leaving purified nitrogen gas.
Cost savings: Long-term savings are achieved by eliminating the recurring costs of purchasing bottled nitrogen.
Convenience: Continuous on-site nitrogen generation eliminates the need for deliveries and reduces the risk of running out of nitrogen.
Customization: On-demand nitrogen generation allows you to tailor the flow and purity to your needs.
PSA (Pressure Swing Adsorption): Uses carbon molecular sieves to separate nitrogen from other gases in compressed air under varying pressure.
Membrane Technology: This technology uses selective permeable membranes to separate nitrogen from oxygen based on the size of the molecules.
