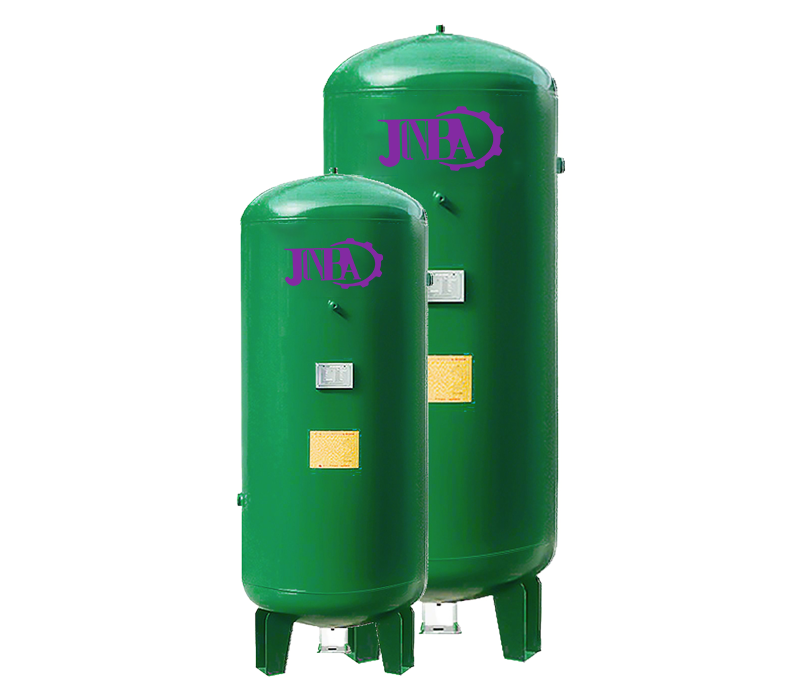

Vertical air receiver tanks built from Q345R pressure vessel steel – high‑strength, low‑alloy, excellent weldability and fatigue resistance. Absorb pulsation, stabilize flow, and knock out bulk moisture before your dryer and filters. This significantly reduces the moisture load on downstream drying and filtration equipment, extending their service life and lowering maintenance costs.
Compact vertical footprint saves valuable floor space. Each tank comes with a certified safety valve, precision pressure gauge, and easy‑access drain. Anti‑corrosion coating inside and out protects against rust and extends service life even in humid environments. Robust certification, plug‑and‑forget reliability – ready for 24/7 operation.
Whether you are running a single compressor or a complex plant-wide air system, these tanks provide the buffer capacity you need to maintain stable pressure during peak demand and prevent disruptive pressure drops.
Request a Quote
These models provide a typical return on investment between 6 to 24 months.
Plug-and-play system can be installed easily with minimum cost and interruption.
Compact design allows installation in spaces too small for twin tower generator systems.
| Model | Volume (ft³/gal) | Design Pressure (PSI) | Design Temp (°F) | Diameter (IN) | Overall Height (IN) | Weight (LB) | Inlet/Outlet | Material | Service |
| 0.3/0.8 | 10.6 / 79 | 116 | 302 | 21.7 | 60.7 | 165 | DN40 | Q345-R | Air |
| 0.6/0.8 | 21.2 / 159 | 120 | 302 | 27.6 | 82.7 | 397 | DN40 | Q345-R | Air |
| 1.0/0.8 | 35.3 / 264 | 120 | 302 | 31.5 | 94.5 | 573 | DN40 | Q345-R | Air |
| 2.0/0.8 | 70.6 / 528 | 120 | 302 | 43.3 | 111.7 | 767 | DN40 | Q345-R | Air |
| 4.0/0.8 | 141 / 1056 | 116 | 230 | 55.1 | 113.0 | 1389 | DN40 | Q235-B | Nitrogen |
| 20/0.8 | 706 / 5280 | 120 | 230 | 94.5 | 200.8 | 6540 | 219*6 | Q345-R | Air |
| Type | Vertical air receiver tank |
|---|---|
| Design pressure range | 116 – 120 psi |
| Connection | Normally 1.6″ (DN40) internal threaded; large volume (20 m³ / 706 ft³) uses steel pipe welding (approx 8.6″ OD) |
| Material | Mainly Q345‑R (pressure vessel steel); 4.0 m³ (141 ft³) nitrogen tank is Q235‑B |
| Service | Air (standard); 4.0 m³ (141 ft³) dedicated for nitrogen |
| Design temperature range | 230 – 302 °F (not specified for 0.3/0.8 model) |
| Standard accessories | Safety valve, pressure gauge, drain valve |
A nitrogen generator is a device that produces nitrogen gas (N₂) from compressed air. It uses separation methods, such as Pressure Swing Adsorption (PSA) and Membrane Technology, to remove oxygen and other gases, leaving purified nitrogen gas.
Cost savings: Long-term savings are achieved by eliminating the recurring costs of purchasing bottled nitrogen.
Convenience: Continuous on-site nitrogen generation eliminates the need for deliveries and reduces the risk of running out of nitrogen.
Customization: On-demand nitrogen generation allows you to tailor the flow and purity to your needs.
PSA (Pressure Swing Adsorption): Uses carbon molecular sieves to separate nitrogen from other gases in compressed air under varying pressure.
Membrane Technology: This technology uses selective permeable membranes to separate nitrogen from oxygen based on the size of the molecules.
